Airfiltech

BIBO-Bag In/Bag Out- Safety change-out- filter

Brands:
Availability: In Stock

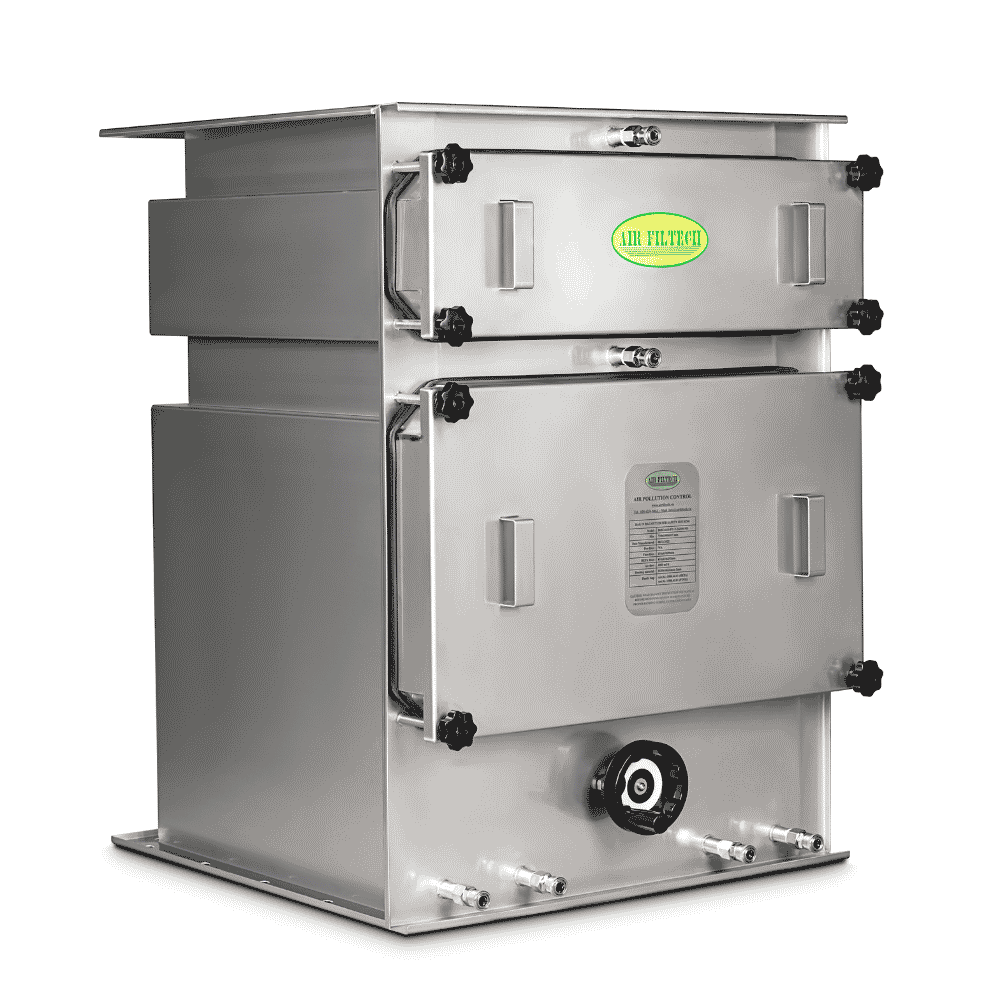

BIBO (Bag In/Bag Out) safe change filter housing, designed with a focus on safety when replacing HEPA/ULPA filters containing hazardous or biological substances.

Category: Tag: SKU: BIBO-EN

Description

• Safe change filter housing, used for systems that require filter replacement without releasing dust/contaminants into the environment.
• Designed with a focus on operator safety; each unit is shipped with a detailed filter replacement manual.
• Filter replacement is carried out inside a sealed bag: the new filter is fitted into the replacement bag, the bag is tied off through the sleeves on the housing door, and the entire replacement process is performed inside the bag.
• Available in multiple module configurations (Arr.1, Arr.3) with main filter sizes of 610x610x292 mm or 762x610x292 mm, with or without pre-filter.

Technical Specifications

Applications:

The housing safety BIBO is designed with safety as a priority. Each housing is supplied with a detailed filter-replacement instruction manual. The basic filter replacement steps include placing the new filter into the replacement bag, securing the bag around the bagging grooves on the housing door, and performing the entire filter replacement process inside the bag.

Specification Table

Dimensions standard

Type Dimensions filter (mm)
305 305 x 610
610 610 x 610
762 762 x 610



The supply air filter

Type Filter So Class Filter Tinh Filter Chinh
PFM 01 01 01
P0M 01 — 01
00M — — 01



Airflow/Bank

Size/bank 1 2 3 4 5 6
305 2.000 4.000 6.000 8.000 10.000 12.000
610 4.000 8.000 12.000 16.000 20.000 24.000
762 6.000 12.000 18.000 24.000 30.000 36.000
