Description
• Transfers items between two rooms of different cleanliness classes without repeatedly opening doors.
• Equipped with a high-quality Air Filtech HEPA filter and a German-brand fan to clean the air inside the hatch.
• Integrated PAO test port for HEPA filter leak testing and a pressure gauge to monitor differential pressure, helping determine the optimal time for filter replacement.
• Fan speed easily adjustable via a rotary knob; fan operating time automatically controlled by a timer.
Technical Specifications

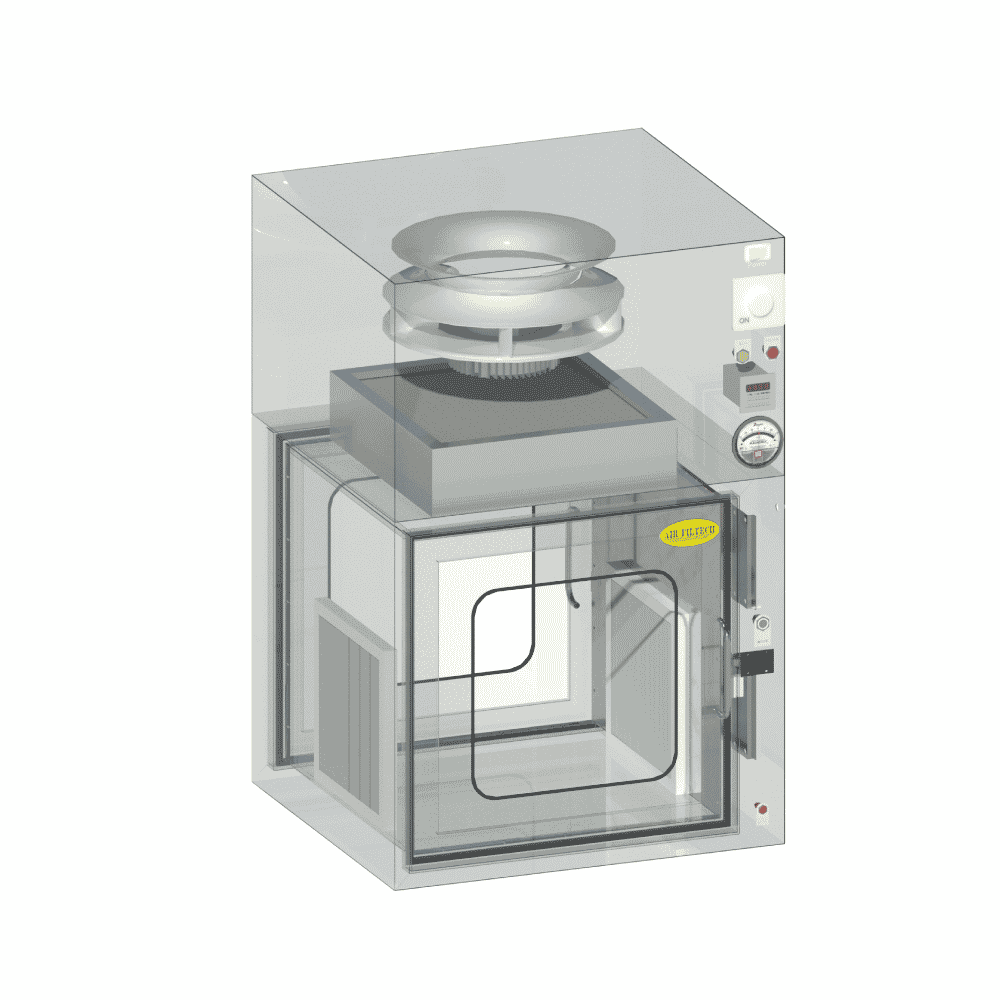

Dynamic PassBox is a device commonly used in cleanrooms to transfer items between two rooms with different cleanliness classifications without repeatedly opening doors. Dynamic PassBox Laminar is equipped with a high-quality HEPA filter from Air Filtech and a German-brand fan. The unit includes safety integrated PAO test port for HEPA filter leak testing. A pressure gauge is also installed to monitor HEPA filter differential pressure, helping determine the optimal filter replacement time. Fan speed can be easily adjusted using a rotary knob, and fan operating time is automatically controlled by a timer. The standard material thickness is 1.2 mm. Available materials include SS304, CSP, SS430, or SS201. RCBO protection. Power switch thereby & interlock thereby with level consumption consumption electrical 12V. Options: UV lamp, LED light.
- Functions: Interlock, port PAO, gauge gauge measure differential pressure for filter HEPA; Timer for fan, Knob control speed air fan.
- Material material: SS304 / SS201 / SS430 / CSP.
- Accessory condition: RCBO, Lamp indicator power, Power switch thereby, Lock thereby; 02 glass tempered heavy-duty with air thick minimum 4.0 mm.
- Options: Lamp UV 15/25W, Lamp Led.
Specification Table
AFT Dynamic PassBox (DPBL)
| Specification |
DPBL-500-(M1*)-(M2*) |
DPBL-600-(M1*)-(M2*) |
DPBL-700-(M1*)-(M2*) |
DPBL-800-(M1*)-(M2*) |
| Internal dimensions (mm) |
500x500x500 |
600x600x600 |
700x700x700 |
800x800x800 |
| External dimensions (mm) |
780x710x560 |
880x1200x660 |
980x1300x760 |
1080x1400x860 |
| Unit filter HEPA, mm (01 unit) |
305x305x150 |
457x457x150 |
575x575x150 |
610x610x150 |
| Unit filter G4 Air Filtech, mm (02 unit) |
300x200x46 |
400x200x46 |
500x200x46 |
600x200x46 |
| AC Fan 220V, W (01 unit) |
135 |
135 |
225 |
225 |
| Functions |
Interlock, port PAO, gauge gauge measure differential pressure for filter HEPA / Timer for fan, Knob control speed air fan |
Interlock, port PAO, gauge gauge measure differential pressure for filter HEPA / Timer for fan, Knob control speed air fan |
Interlock, port PAO, gauge gauge measure differential pressure for filter HEPA / Timer for fan, Knob control speed air fan |
Interlock, port PAO, gauge gauge measure differential pressure for filter HEPA / Timer for fan, Knob control speed air fan |
| Material material |
SS304 / SS201 / CSP |
SS304 / SS201 / CSP |
SS304 / SS201 / CSP |
SS304 / SS201 / CSP |
| Accessory condition |
RCBO, Lamp indicator power, Power switch thereby, Lock thereby, 02 glass tempered heavy-duty with air thick minimum 4.0 mm |
RCBO, Lamp indicator power, Power switch thereby, Lock thereby, 02 glass tempered heavy-duty with air thick minimum 4.0 mm |
RCBO, Lamp indicator power, Power switch thereby, Lock thereby, 02 glass tempered heavy-duty with air thick minimum 4.0 mm |
RCBO, Lamp indicator power, Power switch thereby, Lock thereby, 02 glass tempered heavy-duty with air thick minimum 4.0 mm |
| Options |
UV lamp, LED light |
UV lamp, LED light |
UV lamp, LED light |
UV lamp, LED light |
