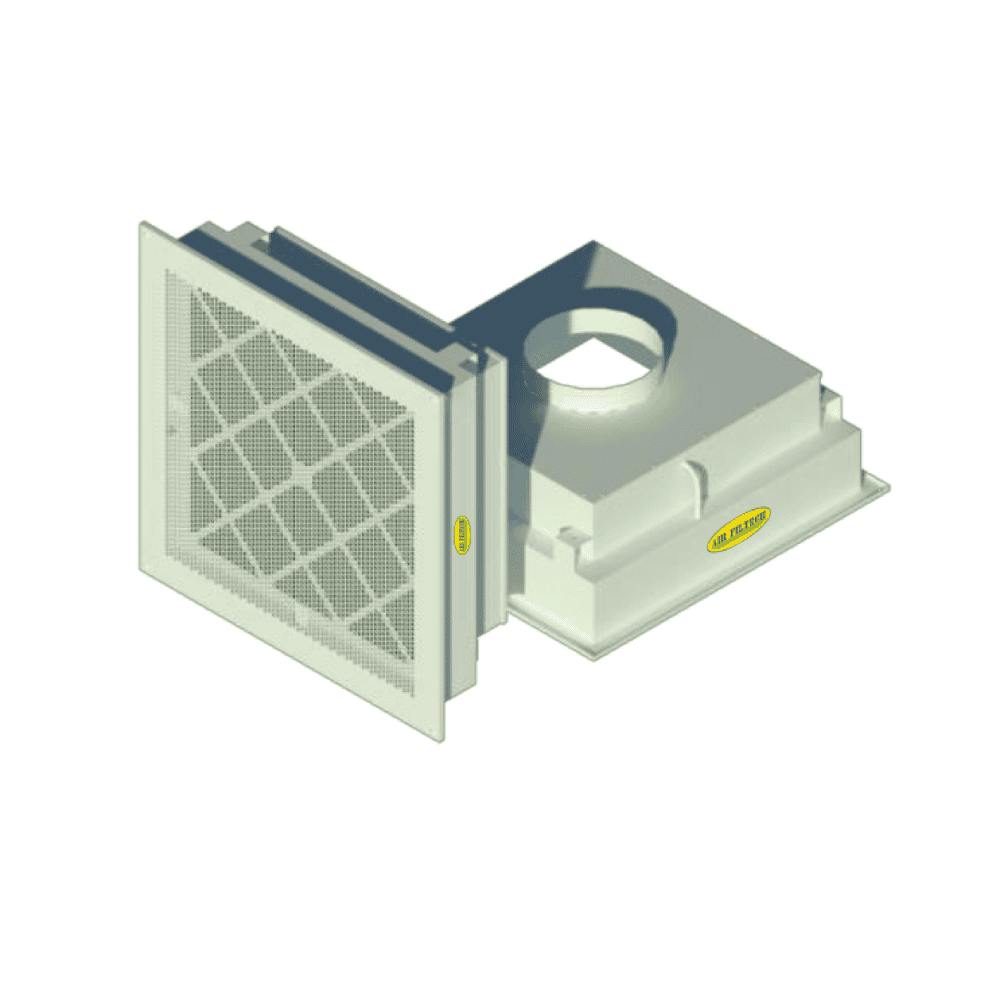

Description
• Used as a return/exhaust air filter housing for cleanrooms or HVAC systems.
• Wall-mounted, holds G4/F7 pre-filter/fine filter (or combined with HEPA/Carbon) with filter thickness of 22/48/96 mm.
• Sturdy welded construction, high reliability, durable for long-term operation.
• Design allows for quick filter replacement and easy maintenance.
• Integrated differential pressure port to monitor filter condition.
• Ceiling-mounted with hanger rods, connects to standard Ø200/Ø250 round ductwork or custom sizes.
Technical Specifications
Advantages:
- Degree reliable reliable high
- Structure structure welded robust robust, durable bi
- Thay replacement filter quick quickly and easy easy maintenance
- Integrated compound port measure differential pressure to monitor
- Applications: Use tool during cleanroom or system HVAC
- Type housing filter: Mounted wall for filter coarse/ filter tinh G4/F7, with air thick 22/48/96 mm
- Material material standard: Thickness 1.0–1.2 mm (Hoac depending options different)
Install setting, Construction connect pipe air:
- Install setting above ceiling by ty suspended
- Construction connect pipe air round standard Ø200 or Ø250 (or dimensions dimensions depending adjust)
Specification Table
Filter Housing G4/F7
| Model |
Dimensions filter (WfxHfxDf mm) |
Dimensions housing (WxHxD mm) |
Thickness housing (mm) |
Dimensions grille grille (WgxHgxDg mm) |
Thickness grille grille (mm) |
| EHD-304*609*152-SS430 |
287 x 592 x 22 |
304 x 609 x 152 |
1.0 |
354 x 659 x 10 |
1.0 |
| EHD-609*609*152-SS430 |
592 x 592 x 22 |
609 x 609 x 152 |
1.0 |
659 x 659 x 10 |
1.0 |
| EHD-510*510*152-SS430 |
495 x 495 x 22 |
510 x 510 x 152 |
1.0 |
560 x 560 x 10 |
1.0 |
| EHD-510*609*152-SS430 |
495 x 592 x 22 |
510 x 609 x 152 |
1.0 |
560 x 659 x 10 |
1.0 |
| EHD-625*304*152-SS430 |
610 x 287 x 22 |
625 x 304 x 152 |
1.0 |
675 x 354 x 10 |
1.0 |
| EHD-625*609*152-SS430 |
610 x 592 x 22 |
625 x 609 x 152 |
1.0 |
675 x 659 x 10 |
1.0 |
| EHD-625*777*152-SS430 |
610 x 762 x 22 |
625 x 777 x 152 |
1.0 |
675 x 827 x 10 |
1.0 |
| EHD-625*929*152-SS430 |
610 x 915 x 22 |
625 x 929 x 152 |
1.0 |
675 x 979 x 10 |
1.0 |
| EHD-625*1234*152-SS430 |
610 x 1220 x 22 |
625 x 1,234 x 152 |
1.2 |
675 x 1,284 x 10 |
1.0 |
| EHD-609*609*176-SS430 |
592 x 592 x 48 |
609 x 609 x 176 |
1.0 |
659 x 659 x 10 |
1.0 |
| EHD-304*609*176-SS430 |
287 x 592 x 48 |
304 x 609 x 176 |
1.0 |
354 x 659 x 10 |
1.0 |
| EHD-510*510*176-SS430 |
495 x 495 x 48 |
510 x 510 x 176 |
1.0 |
560 x 560 x 10 |
1.0 |
| EHD-510*609*176-SS430 |
495 x 592 x 48 |
510 x 609 x 176 |
1.0 |
560 x 659 x 10 |
1.0 |
| EHD-625*304*176-SS430 |
610 x 287 x 48 |
625 x 304 x 176 |
1.0 |
675 x 354 x 10 |
1.0 |
| EHD-625*609*176-SS430 |
610 x 592 x 48 |
625 x 609 x 176 |
1.0 |
675 x 659 x 10 |
1.0 |
| EHD-625*777*176-SS430 |
610 x 762 x 48 |
625 x 777 x 176 |
1.0 |
675 x 827 x 10 |
1.0 |
| EHD-625*929*176-SS430 |
610 x 915 x 48 |
625 x 929 x 176 |
1.0 |
675 x 979 x 10 |
1.0 |
| EHD-625*1234*176-SS430 |
610 x 1220 x 48 |
625 x 1,234 x 176 |
1.2 |
675 x 1,284 x 10 |
1.0 |
Filter Housing G4/F7 and HEPA/Carbon
| Model |
Dimensions filter (WfxHfxDf mm) |
Dimensions housing (WxHxD mm) |
Weight (kg) |
Dimensions grille flange (WdxHd mm) |
Dimensions grille grille (WgxHgxDg mm) |
Thickness filter coarse (mm) |
| EHD-680*680*572-* |
610 x 610 x 292 |
680 x 680 x 572 |
31 |
550 x 150 |
730 x 730 x 10 |
48 |
| EHD-375*680*572-* |
305 x 610 x 292 |
375 x 680 x 572 |
23 |
245 x 150 |
425 x 730 x 10 |
48 |
| EHD-665*665*572-* |
592 x 592 x 292 |
665 x 665 x 572 |
30 |
535 x 150 |
715 x 715 x 10 |
48 |
| EHD-359*665*572-* |
287 x 592 x 292 |
359 x 665 x 572 |
22 |
229 x 150 |
409 x 715 x 10 |
48 |
| EHD-662*662*572-* |
592 x 592 x 292 |
662 x 662 x 572 |
30 |
532 x 150 |
712 x 712 x 10 |
48 |
| EHD-357*662*572-* |
287 x 592 x 292 |
357 x 662 x 572 |
22 |
227 x 150 |
407 x 712 x 10 |
48 |
| EHD-662*357*572-* |
592 x 287 x 292 |
662 x 357 x 572 |
22 |
532 x 150 |
712 x 407 x 10 |
48 |
