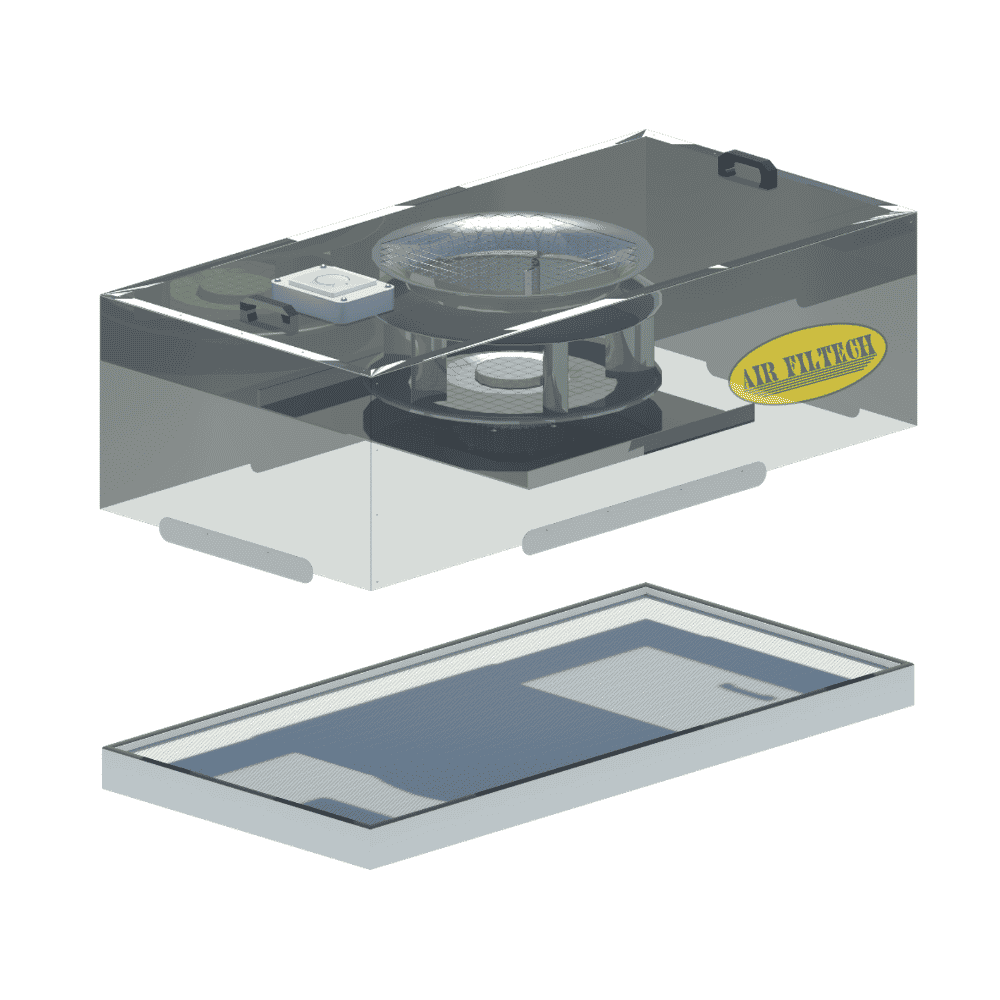

FFU-Fan Filter Unit

Name: FFU-Fan Filter Unit - Airfiltech
SKU: FFU-EN

In Stock

Fan Filter Unit (FFU) supplying clean air directly through the ceiling for cleanrooms, integrating a high-efficiency EC fan and HEPA/ULPA filtration.

Download Catalogue

Category: Fan Filter Unit, Blower Filter Unit Tag: Air Filtech SKU: FFU-EN

Description

• Supplies clean air to cleanrooms, operating rooms, laboratories and electronics manufacturing areas.
• Controls dust and microorganisms, ensuring product quality and safety.
• An essential device in pharmaceutical, food and medical storage environments.

Technical Specifications

Specification

Centrifugal fan and motor EBM-PAPST (Germany): efficiency high, switch technology energy efficient electrical, connection ModBus/BMS, service life minimum 40.000 hours, protect process load temperature.
Unit filter HEPA/ULPA MGT (Turkey): differential pressure initial initial low, anodized aluminum frame, polyurethane gasket, filter media fiber glass tinh or PTFE.
Controller: control speed air fan via TRIAC/DIAC, control fan EC via RS485 (local or remote), support support control the group fan large, panel control touch HMI mounted wall.
Dimensions filter W x H x D: thereby 610x610x69 to 1524x762x69 mm depending on model.
Airflow: 600 – 2.207 m3/h depending dimensions dimensions and type (RSR/STD/L/S/F).
With multiple version basic dimension high body machines different nhau: RSR, STD, L, S, F.

Certification

Unit filter HEPA/ULPA MGT: 100% supplied with MPPS test reports according to standard EN1822.
Fan EBM-PAPST comply manual the standard about air rung, balance by and corrosion shock.

Other options available upon request

Sensor sensor differential pressure filter HEPA, sensor sensor differential pressure fan.
Port connection Ethernet to decomposition group and control multiple fan via Modbus.
Display configuration HMI mounted wall to monitor local.

Specification Table - 01

Group type -EC-E

Model	Dimensions RSR A x B x H (mm)	Dimensions STD A x B x H (mm)	Airflow (m3/h)	Dimensions filter W x H x D (mm)
FFU-2×2-EC-E	680x680x442	615x615x342	600	610x610x69
FFU-2×2.5-EC-E	832x680x442	767x615x342	750	762x610x69
FFU-2×3-EC-E	984x680x442	919x615x342	900	915x610x69
FFU-2.5×3-EC-E	984x832x442	919x767x342	1150	915x762x69
FFU-2×4-EC-E	1289x680x442	1224x615x342	1200	1220x610x69
FFU-2.5×4-EC-E	1289x832x442	1224x767x342	1499	1220x762x69
FFU-2.5×5-EC-E	1594x832x442	1529x767x342	1872	1524x762x69
FFU-4×4-EC-E	1240x1240x442	1175x1175x342	2207	1170x1170x69

Group type -EC-L

Model	Dimensions RSR A x B x H (mm)	Dimensions STD A x B x H (mm)	Airflow (m3/h)	Dimensions filter W x H x D (mm)
FFU-2×2-EC-L	680x680x280	615x615x180	600	610x610x69
FFU-2×2.5-EC-L	832x680x280	767x615x180	750	762x610x69
FFU-2×3-EC-L	984x680x441	919x615x341	900	915x610x69
FFU-2.5×3-EC-L	984x832x441	919x767x341	1150	915x762x69
FFU-2×4-EC-L	1289x680x441	1224x615x341	1200	1220x610x69

Specification Table - 02

Group type -EC-S

Model	Dimensions RSR A x B x H (mm)	Dimensions STD A x B x H (mm)	Airflow (m3/h)	Dimensions filter W x H x D (mm)
FFU-2×2-EC-S	680x680x465	615x615x365	600	610x610x110
FFU-2×2.5-EC-S	832x680x465	767x615x365	750	762x610x110
FFU-2×3-EC-S	984x680x465	919x615x365	900	915x610x110
FFU-2.5×3-EC-S	984x832x465	919x767x365	1150	915x762x110
FFU-2×4-EC-S	1289x680x465	1224x615x365	1200	1220x610x110

Group type -EC-F

Model	Dimensions RSR A x B x H (mm)	Dimensions STD A x B x H (mm)	Airflow (m3/h)	Dimensions filter W x H x D (mm)
FFU-2×2-EC-F	680x680x280	615x615x180	600	610x610x69
FFU-2×2.5-EC-F	832x680x280	767x615x180	750	762x610x69
FFU-2×3-EC-F	984x680x280	919x615x180	900	915x610x69
FFU-2.5×3-EC-F	984x832x442	919x767x342	1150	915x762x69
FFU-2×4-EC-F	1289x680x442	1224x615x342	1200	1220x610x69
FFU-2.5×4-EC-F	1289x832x442	1224x767x342	1499	1220x762x69
FFU-2.5×5-EC-F	1594x832x442	1529x767x342	1872	1524x762x69
FFU-4×4-EC-F	1240x1240x442	1175x1175x342	2207	1170x1170x69
