LamiHosp 2 – laminar flow

Name: LamiHosp 2 - laminar flow - Airfiltech
SKU: LamiHosp-2-EN

In Stock

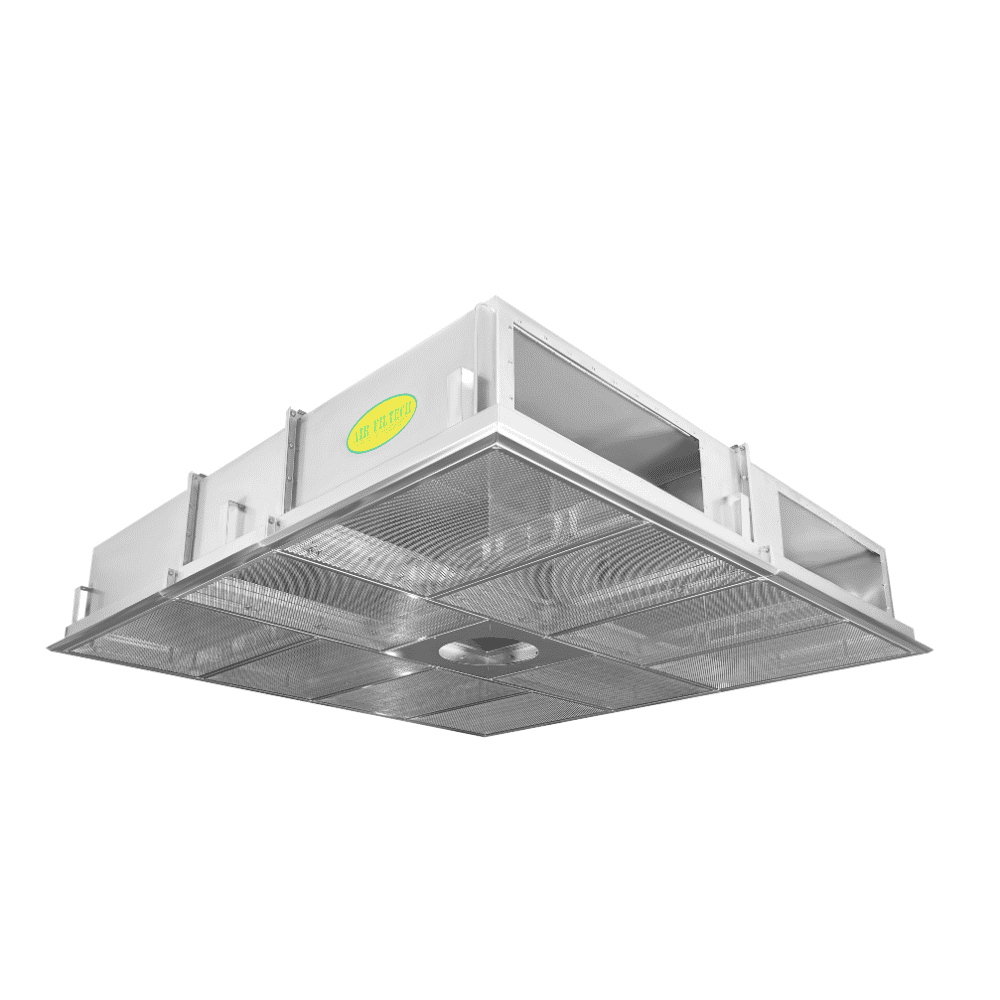

Ceiling-mounted laminar flow filter housing for operating rooms, ensuring high airtightness and in-situ testing capability.

Download Catalogue

Category: LamiHosp Tag: Air Filtech SKU: LamiHosp-2-EN

Description

• Ceiling-mounted laminar flow filter housing designed specifically for hospital operating rooms.
• Supplies ultra-clean air directly to the surgical area, reducing the risk of airborne infection.
• Equipped with a pressure-drop test port and aerosol sampling port (test aerosol) accessible directly from inside the operating room.
• Filter replacement is performed from inside the room, with quick operation thanks to a locating-pin clamping device.
• Perforated mesh face panel/diffuser box ensures even air distribution and stable laminar flow.

Technical Specifications

Applications: Filter Housing mounted ceiling supply air series flow laminar (Laminar) for room operating.
Structure generate: Stainless steel SS304/SS430 or steel paint electrostatic (CSP).
Thickness: Housing: ~1,5mm, Side grille/Plate diffuser air: ~1,2mm.
Test port: 1 port connection test tra can contact access thereby side room operating to measure differential pressure and take sample air aerosol test tra (Test Aerosol).
Thay replacement filter: Thuc site thereby side during room, unit kep quick by the latch fixed position.
Degree tightness air of casing khung at 450Pa: Class B according to standard NF EN 1886:1998, Class L1 (M) according to standard PR EN 1886:2003, Class C according to standard PR EN 12237:2003.
Degree tightness air of gasket at 450Pa: Nho than 10-4 (0,01%) according to standard ISO EN 14644-3.
Options: The panel instruction instruction airflow fixed fixed.
Side grille/Housing diffusion diffusion: Type mesh perforated pore Ø8mm, area vent open 70% helps flow vent air easy easy.

Specification Table

LamiHosp 2 – Lighting & Non-Lighting Series

Group	Type	Dimensions installation (mm)	Area buildup ceiling/Area buildup area area filter (m2)	Airflow 0.25 m/s (m3/h)	Airflow 0.3 m/s (m3/h)	Airflow 0.45 m/s (m3/h)	Class air cleanroom class 40-45m2	Filter HEPA/ULPA 560x260x69	Filter HEPA/ULPA 560x560x69	Filter HEPA/ULPA 560x860x69	Filter HEPA/ULPA 560x1165x69
Lighting Series	LH 1L	1815x1210x405	2.23/1.62	1,436	1,723	2,585	–	2			2
Lighting Series	LH 1.5L	1820x1810x405	3.35/2.60	2,298	2,757	4,136	–		2	4
Lighting Series	LH 2L	2420x1815x405	4.47/3.59	3,150	3,780	5,670	ISO7		2	6
Lighting Series	LH 3L	2420x2420x455	5.96/4.92	4,320	5,184	7,776	ISO7			10
Lighting Series	LH 3.5L	3030x2420x455	7.45/6.29	5,580	6,696	10,044	ISO6-7			2	8
Lighting Series	LH 4L	3027x3027x455	9.31/7.97	7,020	8,424	12,636	ISO6-7				12
Non – Lighting Series	LH 1	1815x1210x405	2.23/1.99	1,792	2,151	3,226	–				3
Non – Lighting Series	LH 1.5	1812x1815x405	3.35/2.95	2,654	3,185	4,778	–			6
Non – Lighting Series	LH 2	2420x1812x405	4.47/3.93	3,539	4,247	6,370	ISO7			8
Non – Lighting Series	LH 3	2422x2420x455	5.96/5.31	4,780	5,736	8,604	ISO7				8
