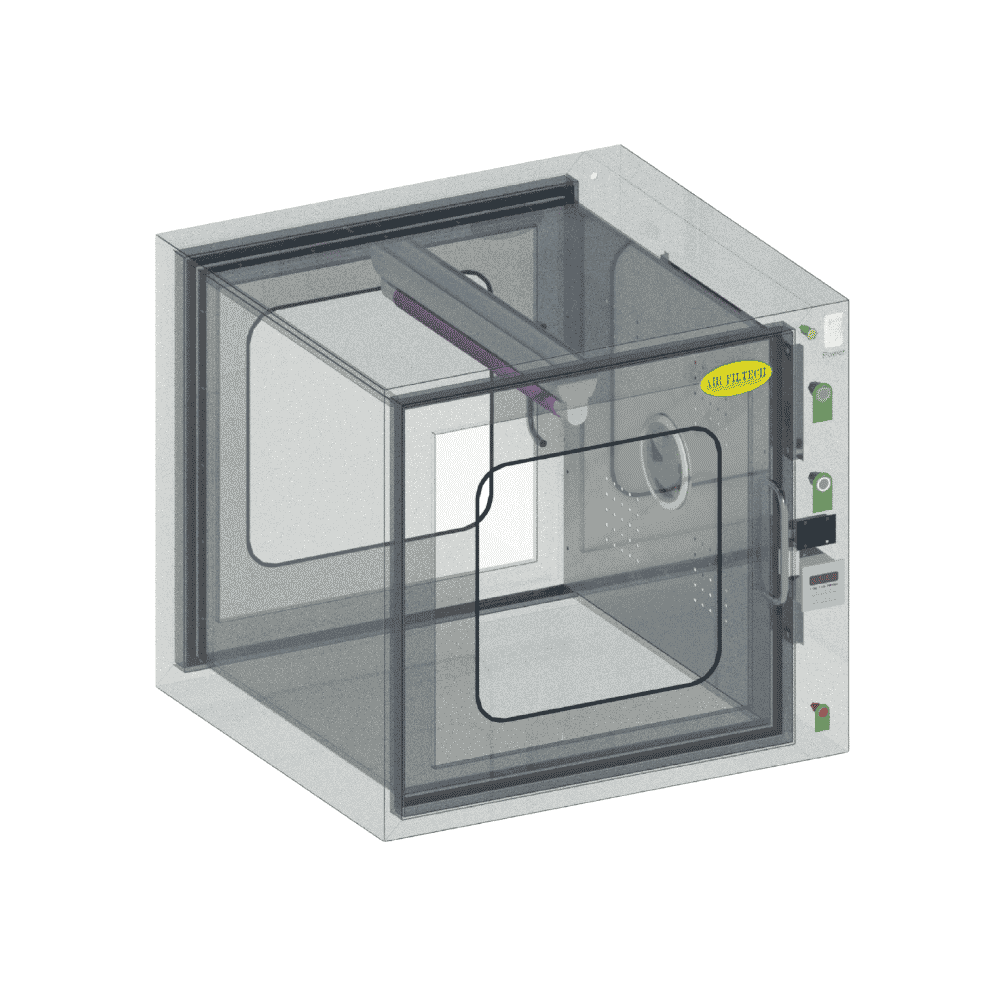

Static transfer hatch (Static PassBox) for transferring items between two rooms of the same cleanliness class without repeatedly opening doors.
• Transfers items between two rooms of the same cleanliness class without repeatedly opening doors, reducing the risk of dust and contaminant ingress.
• Equipped with an electric interlock (12V power supply) and RCBO protection for user safety.
• Integrated germicidal UV lamp with standard power of 15/25W and an adjustable timer for exposure duration.
• Multiple sizes and materials available, customizable on request.
Static PassBox is a device commonly used in cleanrooms to transfer items between two rooms with the same cleanliness classification without repeatedly opening doors. Static PassBox is equipped with safety electrical interlock, operates on a 12 V power supply and includes safety RCBO for user safety protection. Static PassBox is available in various sizes and can be customized upon request. The standard material thickness is 1.2 mm. Available materials include SS304, CSP, SS430 or SS201. Static PassBox includes a UV lamp and timer to control UV exposure time. The standard UV lamp power is 15/25W. The unit has robust double tempered-glass panels. Options: LED light automatically switches on/off with door movement.
| Specification | SPB-500-UV15-(M1*)-(M2*) | SPB-600-UV15-(M1*)-(M2*) | SPB-700-UV25-(M1*)-(M2*) | SPB-800-UV25-(M1*)-(M2*) |
| Internal dimensions (mm) | 500x500x500 | 600x600x600 | 700x700x700 | 800x800x800 |
| External dimensions (mm) | 640x590x560 | 740x690x660 | 840x790x760 | 940x890x860 |
| Lamp UV Philips (W) | 15 | 15 | 25 | 25 |
| Functions |
Interlock, Timer for lamp UV |
|||
| Material material |
SS304 / CSP / SS201 |
|||
| Accessory condition |
RCBO, Lamp indicator power, Power switch thereby, Lock thereby, 02 glass tempered heavy-duty with air thick minimum 4.0 mm |
|||
| Options |
Lamp UV power high, Lamp Led |
|||
