Airfiltech

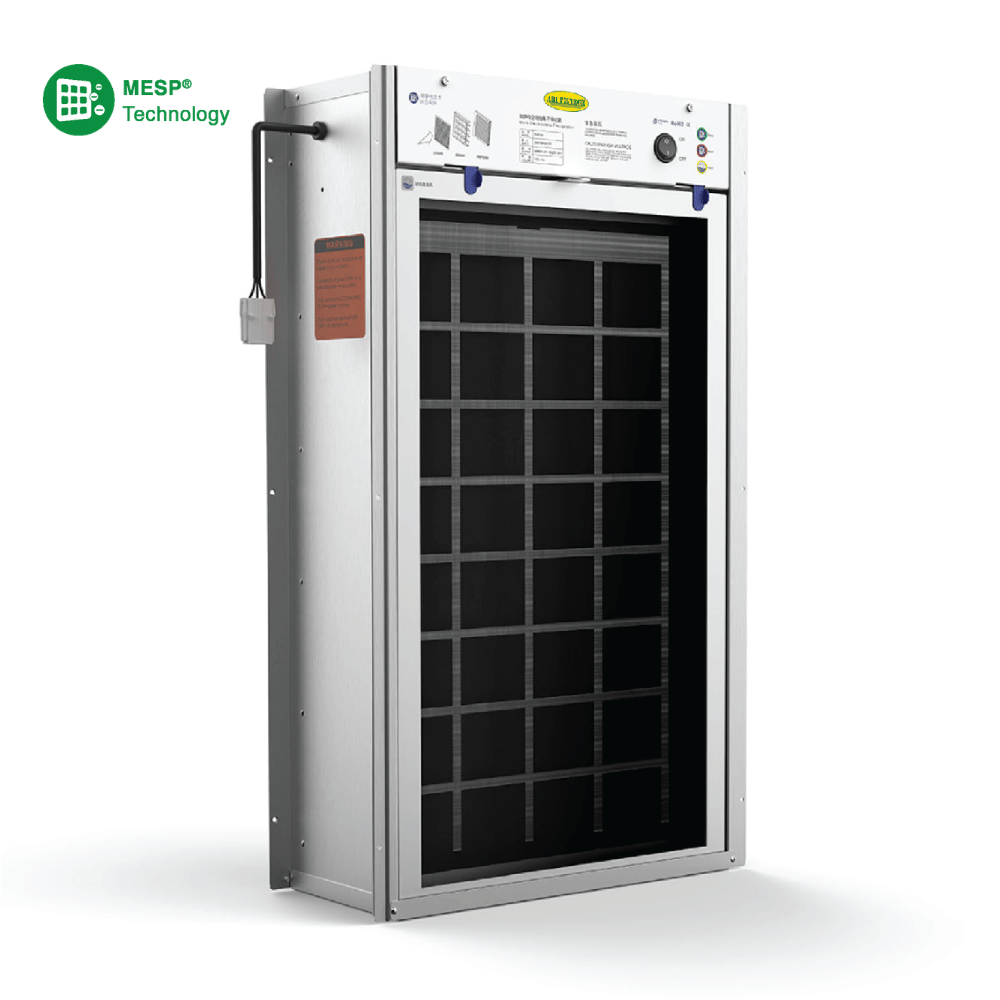

M-AHU: AHU Sterilizing Purifier – MESP® Technology

Availability: In Stock

UL LISTED E477054

•0 space occupation, 0 material consumption, 0 noise

•MESP technology, ultrahigh one-time purification efficiency, and greatly reduce maintenance cost of air-conditioning system, and simultaneously disinfect indoor air to ensure a safer living environment.

Category: Tag: SKU: M-AHU-MESP

Description

Product Feature

•Replace traditional bag filter section of AHU, low air pressure drop.

•One-time purification efficiency is up to 95%.

•Can be washed repeatedly.

•Thicker MESP module to ensure better dust removal/disinfection efficiency.

•Module design to ensure higher coverage rate.

•Low pressure drop and energy consumption.

•Can operate in high humidity environment.

•Supported by multiple certifications.

•Easy to maintain.

•Prax smart power module to ensure stable electricity output, high dust removal rate.

Technical specs

Application

0 space occupation, 0 material consumption, 0 noise. MESP technology, ultrahigh one-time purification efficiency, and greatly reduce maintenance cost of air-conditioning system, and simultaneously disinfect indoor air to ensure a safer living environment.

  • Replace traditional bag filter section of AHU, low air pressure drop.
  • One-time purification efficiency is up to 95%.
  • Can be washed repeatedly.
  • Thicker MESP module to ensure better dust removal/disinfection efficiency.
  • Module design to ensure higher coverage rate.
  • Low pressure drop and energy consumption.
  • Can operate in high humidity environment.
  • Supported by multiple certifications (UL Listed).
  • Easy to maintain.
  • Prax smart power module to ensure stable electricity output, high dust removal rate.

Specification Parameters

Parameter M-AHU-17 M-AHU-34 M-AHU-11 M-AHU-22
Description Single MESP Unit Dual MESP Unit Single MESP Unit Dual MESP Unit
Dimension W×H×D (mm) 370x610x150 680x610x150 222x610x150 402x610x150
Rated Airflow @ 90% PM2.5 Efficiency (m³/h) 1700 3400 1100 2200
Rated Airflow @ 95% PM2.5 Efficiency (m³/h) 1300 2600 900 1800
Power Supply (V/Hz) 100-240~/50-60 100-240~/50-60 100-240~/50-60 100-240~/50-60
Rated Power (W) 7 13 5 8.5
Pressure Drop @2.5m/s (Pa) <50 <50 <50 <50
Microbial Purification Efficiency (%) Up to 98 (Staphylococcus albus) Up to 98 (Staphylococcus albus) Up to 98 (Staphylococcus albus) Up to 98 (Staphylococcus albus)
Disinfection Method and Certification Electrostatic Sterilization (Sterilizer Certification) Electrostatic Sterilization (Sterilizer Certification) Electrostatic Sterilization (Sterilizer Certification) Electrostatic Sterilization (Sterilizer Certification)
Certification UL/MERV 14 UL/MERV 14 MERV 14 MERV 14
Status Indication Running Running Running Running
Optional Components Wiring Box/ Control Box/ M7 activated carbon Filter Wiring Box/ Control Box/ M7 activated carbon Filter Wiring Box/ Control Box/ M7 activated carbon Filter Wiring Box/ Control Box/ M7 activated carbon Filter
Weight (Kg) 10 13 6.5 8
