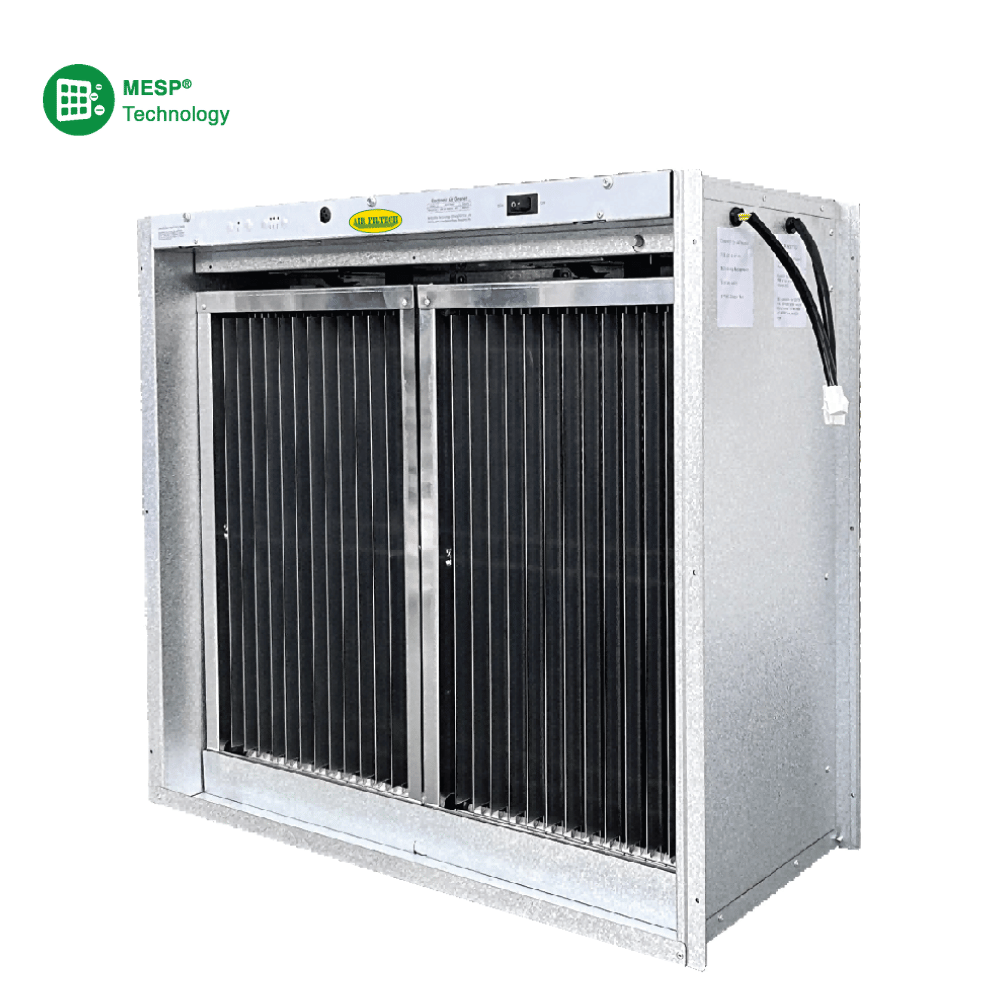

M-AHU-G: AHU Electronic Air Cleaner – MESP® Technology

Availability: In Stock

•Best Alternative To Bag Filter: Electronic Air Cleaner for Fresh Air AHU

•The M-AHU-G AHU Air Cleaner, powered by MESP® Plus Technology, features a double-stage micro electrostatic precipitation (MESP) system, delivering superior filtration without the drawbacks of conventional filters. With a MERV15/F9 efficiency rating, it captures ultrafine particles as small as 0.01μm, significantly improving indoor air quality.

•Unlike traditional disposable filters, the M-AHU-G Air Cleaner is fully washable and reusable, requiring cleaning only every 6-12 months. With a lifespan of up to 10 years, it reduces waste and operational costs, making it an environmentally friendly and cost-effective choice.

Category: Tag: SKU: M-AHU-G-MESP

Description

Product Feature

•Superior Purification Efficiency: MERV15/F9-rated, achieves >99% filtration rates, meeting stringent air quality standards for cleanrooms and industrial settings.

•Extended Maintenance Cycles: Optimized design allows up to 12-month washing cycles under moderate conditions (fresh air <25%, runtime <10 hours/day).
Compact and Lightweight Design: 30% smaller and lighter than conventional air filtration systems, making installation and retrofitting easier.

•Cost-Effective and High-Performance: Optimized for long-term savings with superior dust-holding capacity, ensuring efficient filtration with minimal operational costs.

Technical specs

Application

Best Alternative To Bag Filter: Electronic Air Cleaner for Fresh Air AHU. The M-AHU-G AHU Air Cleaner, powered by MESP® Plus Technology, features a double-stage micro electrostatic precipitation (MESP) system, delivering superior filtration without the drawbacks of conventional filters. With a MERV15/F9 efficiency rating, it captures ultrafine particles as small as 0.01μm, significantly improving indoor air quality. Unlike traditional disposable filters, the M-AHU-G Air Cleaner is fully washable and reusable, requiring cleaning only every 6-12 months, with a lifespan of up to 10 years.

  • Superior Purification Efficiency: MERV15/F9-rated, achieves >99% filtration rates, meeting stringent air quality standards for cleanrooms and industrial settings.
  • Extended Maintenance Cycles: optimized design allows up to 12-month washing cycles under moderate conditions (fresh air <25%, runtime <10 hours/day).
  • Compact and Lightweight Design: 30% smaller and lighter than conventional air filtration systems, making installation and retrofitting easier.
  • Cost-Effective and High-Performance: optimized for long-term savings with superior dust-holding capacity, ensuring efficient filtration with minimal operational costs.

Specification Parameters

Parameter M-AHU-G-AE-17 M-AHU-G-AE-34
Description Single MESP Unit Single MESP Unit
Dimension W×H×D (mm) 370x610x280 680x610x280
Rated Airflow @ 99% PM2.5 Efficiency (m³/h) 1700 3400
Rated Airflow @ 95% PM2.5 Efficiency (m³/h) 2600 5200
Input Power Supply (V/Hz) 220-240/50-60 220-240/50-60
Rated Power (W) 30 40
Pressure Drop @2.5m/s (Pa) ≤55 ≤55
Microbial Purification Efficiency (%) Up to 99 Up to 99
Switch Type On-Off Bridge Switch On-Off Bridge Switch
Status Indication Running/Cleaning/Failure Running/Cleaning/Failure
Equipment Weight (Kg) 16 25
Pre Filter 46mm Metal Prefilter 46mm Metal Prefilter
Safety Configuration Safety Switch + Airflow Sensor Safety Switch + Airflow Sensor
Optional Components Wiring Box / Control Box / M7 activated carbon Filter Wiring Box / Control Box / M7 activated carbon Filter
BMS Port Passive Dry Port of Failure/Cleaning Passive Dry Port of Failure/Cleaning
