Description
Product Feature
•Convenient installation and easy maintenance, ready-to-use.
•A sterilizing air purifier with high energy efficiency.
Real-time display of air quality data, can be set automatic.
•Low noise level.
•Stable operation, low energy consumption.
•MESP filter, can be washed repeatedly without consumables.
•Adjustable air speed with 5 levels.
•Intelligent control, optional control methods (Remote control/RS485/Tuya APP).
System Advantages
•Applicable to spaces without a central AC system or conditions to install the return air inlet purifiers. Inbuilt fan can run independently without linking to the central AC system.
Technical specs
Application

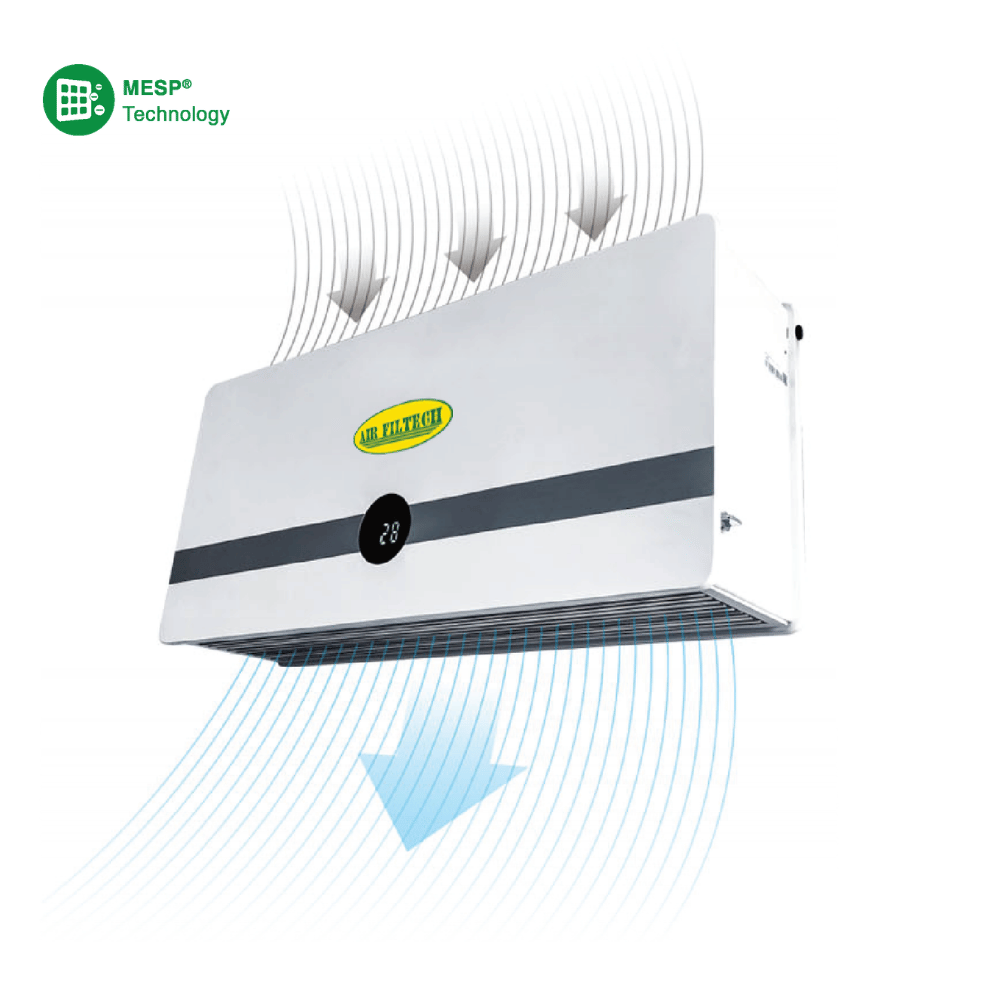

0 space occupation, 0 material consumption and 0 ozone. Wall-mounted without floor occupation, easy installation, highly efficient purification and sterilization, intelligent operation control.
- Convenient installation and easy maintenance, ready-to-use.
- A sterilizing air purifier with high energy efficiency.
- Real-time display of air quality data, can be set to automatic.
- Low noise level.
- Stable operation, low energy consumption.
- MESP filter, can be washed repeatedly without consumables.
- Adjustable air speed with 5 levels.
- Intelligent control, optional control methods (Remote control/ RS485/ Tuya APP).
- System Advantage: applicable to spaces without a central AC system or without conditions to install a return-air-inlet purifier. Inbuilt fan runs independently, with no need to link to the central AC system.
Specification Parameters
| Parameter |
M-Wa-07 |
| Power Supply (V/Hz) |
100-240~/50-60 |
| Rated Power (W) |
30/25/20/15/13 |
| Rated Air Flow (m³/h) |
650/500/400/300/200 |
| Clean Air Delivery Rate of Particulate Matter (m³/h) |
550 |
| Accumulated Particulate Matter Purification Energy Consumption (CCM Particulate Matter) |
P3 |
| Purification Energy Efficiency (Particulate Matter m³/(w·h)) |
18.3 (High Efficiency) |
| Microbial Circulation Removal Rate (%) |
99.9 (Staphylococcus Albus) |
| Applicable Area (m²) |
35-65 |
| Noise High/Medium/Low Sound Pressure Level dB(A) |
40/36/33/30/28 |
| Noise High/Medium/Low Sound Power Level dB(A) |
48/44/41/38/36 |
| Dimension L x W x H (mm) |
900 x 415 x 225 |
| Weight (Kg) |
21 |
| Product Color |
White |
| Control Mode |
Remote Control/APP Graffiti/RS485 |
| Optional Components |
M8 Formaldehyde Filter |
| Type of Electric Shock Protection |
Class I |
| Product Execution Standard |
GB/T18801-2022; GB4706.1-2005; SB4706.45-2008 |
Note: The applicable area is based on a room height of 2.7m; for a different height, please divide by the equivalent volume of the room.
