Description
Product Feature
•Ceiling-mounted without floor occupation, run immediately after installation, easy to maintain.
•Simple embedding design fits in all occasions.
•Run independently in big air volume with fan component, no need to link with Central AC system.
•Repeatedly large air circulation, air inlet in the middle, and air outlet in four directions.
•Long maintenance cycle, high removal rates for both particles and methanol.
•0 material waste and 0 noise, stable performance endorsed by several authoritative certificates.
•Low energy consumption, large amount of negative ions are beneficial to human and animal health.
•Various control methods including remote control, APP smart control, and BMS control (RS485).
System Advantages
•Applicable to spaces without central AC system or no condition to install the return air inlet-used purifiers. Inbuilt fan can run independently with no need to link with the central AC system.
Technical specs
Application
0 space occupation, 0 material consumption. Ceiling-mounted, run independently in big air volume, efficiently remove the haze and disinfect the air.
- Ceiling-mounted without floor occupation, run immediately after installation, easy to maintain.
- Simple embedding design fits in all occasions.
- Run independently in big air volume with fan component, no need to link with Central AC system.
- Large air circulation, air inlet in the middle, and air outlet in four directions.
- Long maintenance cycle, high removal rates for both particles and methanal.
- 0 material waste and 0 noise, stable performance endorsed by several authoritative certificates.
- Low energy consumption; large amount of negative ion is beneficial to human and animal health.
- Various control methods including remote control, APP smart control, and BMS control (RS485).
- System Advantage: applicable to spaces without a central AC system or without conditions to install a return-air-inlet purifier. Inbuilt fan runs independently, with no need to link to the central AC system.

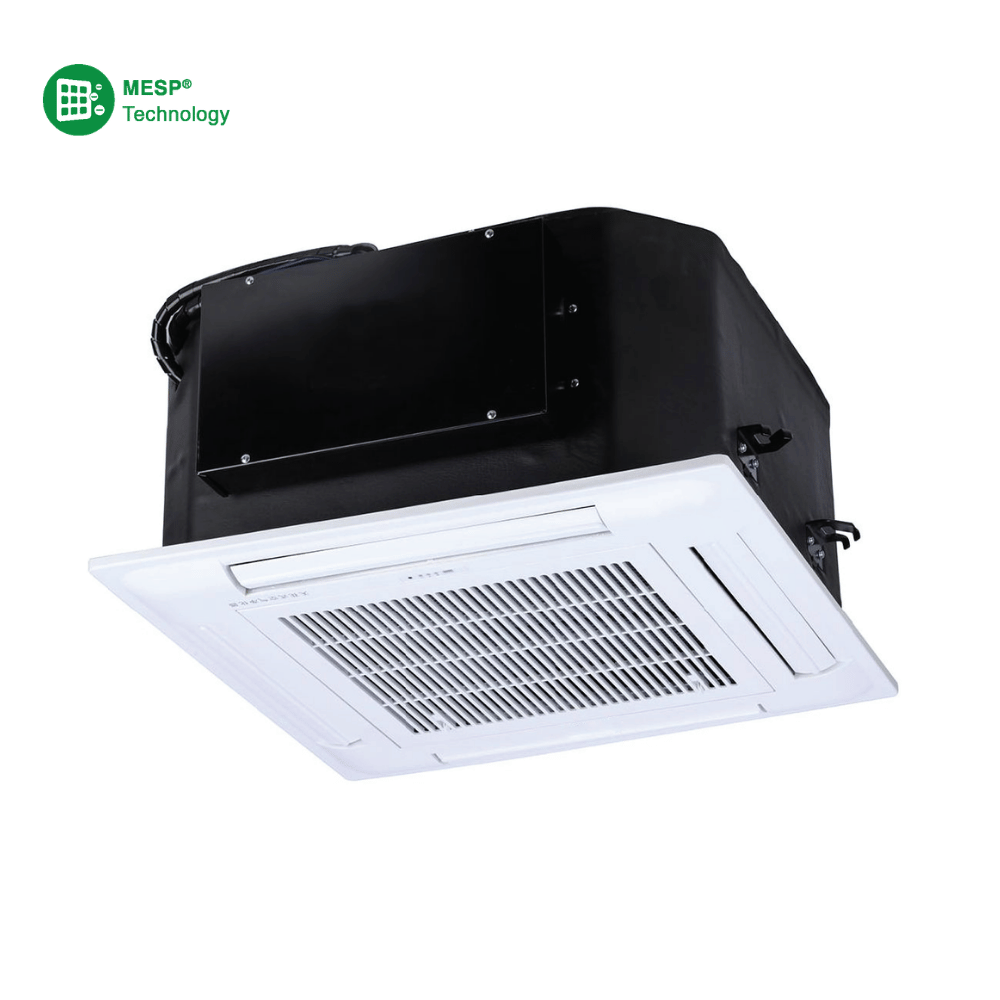

Specification Parameters
| Parameter |
M-Ce-07A (International Version) |
| Power Supply (V/Hz) |
100-240~/50-60 |
| Rated Power (W) |
65 |
| Rated Air Flow (m³/h) |
650 |
| Clean Air Delivery Rate of Particulate Matter (m³/h) |
530 |
| Accumulated Particulate Matter Purification Energy Consumption (CCM Particulate Matter) |
P4 |
| Purification Energy Efficiency (Particulate Matter m³/(w·h)) |
8.1 (High Efficiency) |
| Microbial Circulation Removal Rate (%) |
99.99 (Staphylococcus Albus) |
| Applicable Area (m²) |
35-60 |
| Noise High/Medium/Low Sound Pressure Level dB(A) |
38/35/32 |
| Noise High/Medium/Low Sound Power Level dB(A) |
49/46/43 |
| Dimension L x W x H (mm) |
585 x 585 x 290 |
| Panel Dimension L x W x H (mm) |
650 x 650 x 28 |
| Weight (Kg) |
21 |
| Product Color |
White |
| Control Mode |
Remote Control/APP/Wire Control/RS485 |
| Optional Components |
MB Formaldehyde Filter (Optional) |
| Type of Electric Shock Protection |
Class I |
| Product Execution Standard |
CB/T18801-2015; GB4706.1-2005; SB4706.45-2008 |
Note: The applicable area is based on a room height of 2.7m; for a different height, please divide by the equivalent volume of the room.
