•Applied in spaces installed with fresh air system or the exhaust system for air cleaning purposes. Higher one-time purification efficiency compared to ESP technology product.
Product Feature

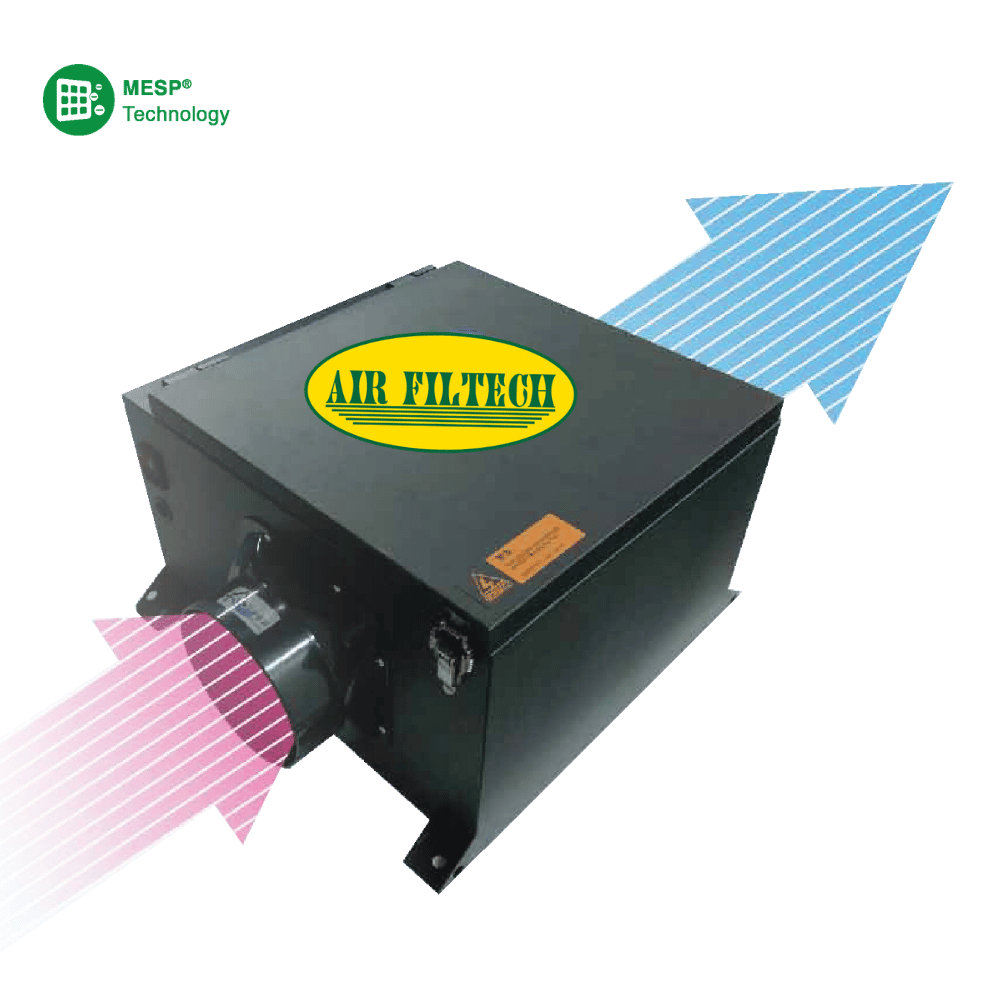

•Independent air purifier unit that can be matched with any ventilation system.
•Efficient purification of particulate matter to remove the suspended PM2.5 and other particles in the air, such as dust, smoke, cigarette smell, pollen, virus, spores, bacteria, etc.
•Widely suitable for places with demand for fresh air, like offices, conference rooms, exhibition halls, theaters, hotels, hospitals, residences, apartments, factories, etc.
Application
Applied in spaces installed with fresh air system or the exhaust system for air cleaning purpose. Higher one-time purification efficiency compared to ESP technology product.
| Parameter | M-AD-04A |
| Applicable Air Volume (m³/h) | 200 / 400 / 600 |
| Cleaning Efficiency for PM2.5 (%) | Up to 99 / 98 / 96 (at 200/400/600 m³/h) |
| Microorganism Purification Efficiency @200m³/h (%) | Up to 97.8 |
| Pressure Drop (Pa) | <35 / <100 / <170 (at 200/400/600 m³/h) |
| Power Supply (V/Hz) | 100-240~/50-60 |
| Rated Power (W) | 5 |
| Air Vent Size (mm) | Φ146 |
| Dimension L x W x H (mm) | 528x425x263 |
| Weight (Kg) | 10 |
| Status Indication | Running/Cleaning |
| Maintenance Way | Maintain and clean from the bottom |
| Optional Accessory | M10 Multifunctional Filter |
