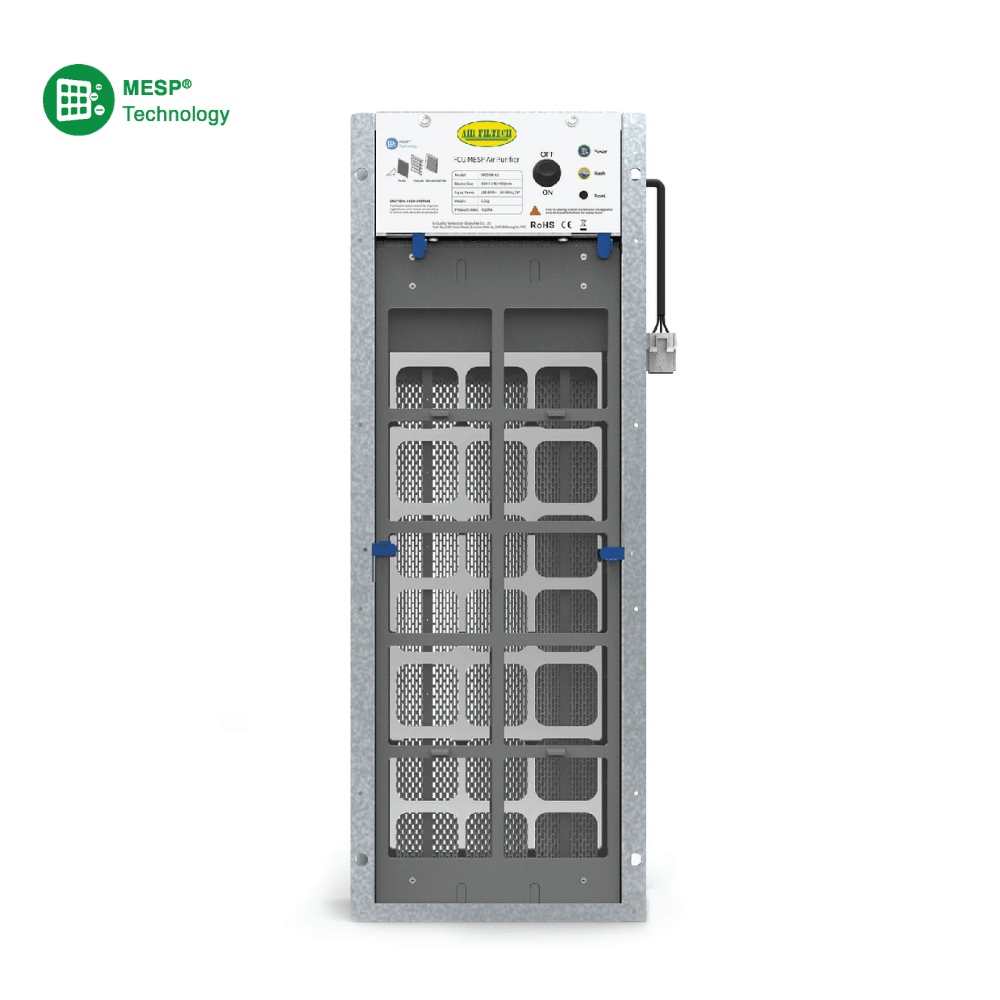

•0 space occupation, 0 material consumption, 0 noise
•Low pressure drop, high PM removal efficiency, perfect for fan coil return air purification and disinfection
Product Feature
•Remove 99% of PM2.5, methanal, influenza virus, and other air pollutants.
•Concealed in return air inlet of central AC without affecting decoration and occupying floor space.
Low pressure drop.
•3-D air circulation.
•Reduce energy consumption by maintaining good performance.
•Intelligent control, linked to fan coil, the device runs when there is airflow and stops when there isn’t.
•Can be applied to both fluorine and water AC systems.
Application
0 space occupation, 0 material consumption, 0 noise. Low pressure drop, high PM removal efficiency, perfect for fan coil return air purification and disinfection.
| Parameter | M-FCU-06A | M-FCU-12A | M-FCU-07A | M-FCU-07B |
| Dimension (W x H x D mm) | 280x550x72 | 523x550x72 | 232x950x78 | 225x1000x140 |
| Applicable Air Volume (m³/h) | 610 | 1220 | 700 | 700 |
| Cleaning Efficiency for PM2.5 (%) | Up to 99 | Up to 99 | Up to 99 | Up to 99 |
| Cleaning Efficiency of Microorganism (%) | Up to 99 (Staphylococcus albus) | Up to 99 (Staphylococcus albus) | Up to 99 (Staphylococcus albus) | Up to 99 (Staphylococcus albus) |
| Pressure Drop @1.0m/s (Pa) | 10 | 10 | 10 | 10 |
| Disinfection Method and Certification | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | None |
| Power Supply (V/Hz) | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 |
| Rated Power (W) | 4.5 | 8 | 6 | 6.5 |
| Status Indication | Running | Running | Running | Running |
| Weight (Kg) | 5 | 7 | 7 | 9 |
| Parameter | M-FCU-05A2 | M-FCU-07A2 | M-FCU-09A2 | M-FCU-10A2 | M-FCU-14A2 | M-FCU-05B2 | M-FCU-07B2 | M-FCU-09B2 | M-FCU-10B2 | M-FCU-14B2 |
| Dimension (W x H x D mm) | 241x660x90 | 241x800x90 | 241x960x90 | 241x1170x90 | 241x1470x90 | 241x700x145 | 241x870x145 | 241x1000x145 | 241x1204x145 | 241x1504x145 |
| Applicable Air Volume (m³/h) | 510 | 680 | 850 | 1020 | 1360 | 510 | 680 | 850 | 1020 | 1360 |
| Cleaning Efficiency for PM2.5 (%) | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 | Up to 99 |
| Cleaning Efficiency of Microorganism (%) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) | Up to 99 (Staph. albus) |
| Pressure Drop @1.0m/s (Pa) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Disinfection Method and Certification | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | Electrostatic Sterilization (Sterilizer Certification) | None | None | None | None | None |
| Power Supply (V/Hz) | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 |
| Rated Power (W) | 5.5 | 6 | 7 | 8 | 9.5 | 5.5 | 6 | 7 | 8.5 | 10 |
| Status Indication | Running | Running | Running | Running | Running | Running | Running | Running | Running | Running |
| Weight (Kg) | 4.5 | 6 | 6.5 | 7.5 | 10 | 4.5 | 6 | 6.5 | 7.5 | 10 |
| Parameter | M-FCU-05A3 | M-FCU-07A3 | M-FCU-09A3 | M-FCU-10A3 | M-FCU-14A3 | M-FCU-05B3 | M-FCU-07B3 | M-FCU-09B3 | M-FCU-10B3 | M-FCU-14B3 |
| Dimension (W x H x D mm) | 241x660x90 | 241x830x90 | 241x960x90 | 241x1170x90 | 241x1470x90 | 242x700x110 | 242x870x110 | 242x1000x110 | 242x1204x110 | 242x1504x110 |
| Applicable Air Volume (m³/h) | 510 | 680 | 850 | 1020 | 1360 | 510 | 680 | 850 | 1020 | 1360 |
| Microbial Circulation Removal Rate (%) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) | Up to 99.9 (Staph. albus) |
| Disinfection Time (min) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Power Supply (V/Hz) | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 | 110-240~/50-60 |
| Rated Power (W) | 5 | 5.5 | 6 | 7 | 8 | 4.5 | 5 | 5.5 | 6 | 7 |
| Status Indication | Running | Running | Running | Running | Running | Running | Running | Running | Running | Running |
| Weight (Kg) | 3.5 | 4 | 4.5 | 5 | 6 | 4.5 | 5 | 5.5 | 6 | 7 |
